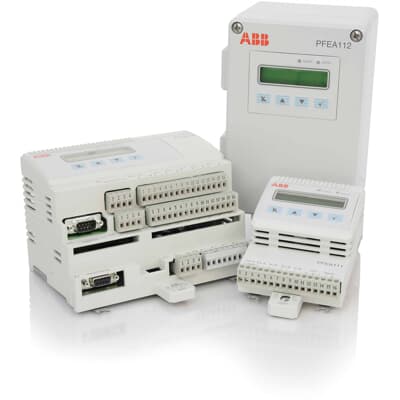

| Power supply |
|
|
|
| IP 20 Voltage | DC 24 V (18 - 36 V)
|
| Power Requirement | 7.5 W | 7.5 W | 12 W |
| IP 65 Main voltage | DC 24 V (18 - 36 V) 100 (-15%) - 240 (+10%) V AC
|
| Frequency | 45 - 65 Hz
|
| Number of load cells | 2 | 2 | 4 |
| Load cell excitation |
|
|
|
| Current | 0.5 A rms, 330 Hz | 0.5 A rms, 330 Hz | 0.5 A rms, 330 Hz |
| Max. load | 2 load cells plus 5 Ω cable resistance | 2 load cells plus 5 Ω cable resistance | 4 load cells plus 10 Ω cable resistance |
| Inputs |
|
|
|
| Digital inputs | - | - | 1 |
| Analog inputs | - | - | 2 |
| Outputs |
|
|
|
| Analog outputs (voltage or current) | - | - | 6 |
| -5 - +11V | 1 | 1 | - |
| 0 - 21 mA | 1 | 1 | - |
| Selectable filter | 15, 30, 75, 250, 750, 1500 ms | 15, 30, 75, 250, 750, 1500 ms | 5, 15, 30, 75, 250, 750, 1500 ms |
| Scaling function for analog outputs | Yes | Yes | Yes |
| Digital outputs | - | - | 4 |
| Self diagnostics, Status OK |
|
|
|
| LED (green/red) | Yes | Yes | Yes |
| Alarm on Digital output | - | - | Yes |
| Alarm via Profibus | - | Yes | Yes |
| Multi language interactive display | Yes | Yes | Yes |
| Selectable tension units on the display | N, kN, kg and lbs., N/m, kN/m, kg/m, pli
|
| Maximum load memory | Yes | Yes | Yes |
| Zero offset memory | Yes | Yes | Yes |
| Communication |
|
|
|
| Profibus DP | - | Yes | Yes |
| GSD-file |
| ABB_0716.GSD | ABB_0716.GSD |
| Environmental tolerance |
|
|
|
| Electrical environment |
|
|
|
| Electrical interference environment | As per EMC Directive 89/336/EEC
|
| Electrical safety | As per Low Voltage Directive 73/23/EEC
|
| As per UL508 Industrial control equipment
|
| Ambient temperature | +5 - +55°C
|
| Degree of protection | IEC 529 Protection class IP 20 or IP 65
|
